LED linear luminaire
0.3 W

RLL 511
3000 K, warm white, 34 lm, lenght 260 mm
3d photo

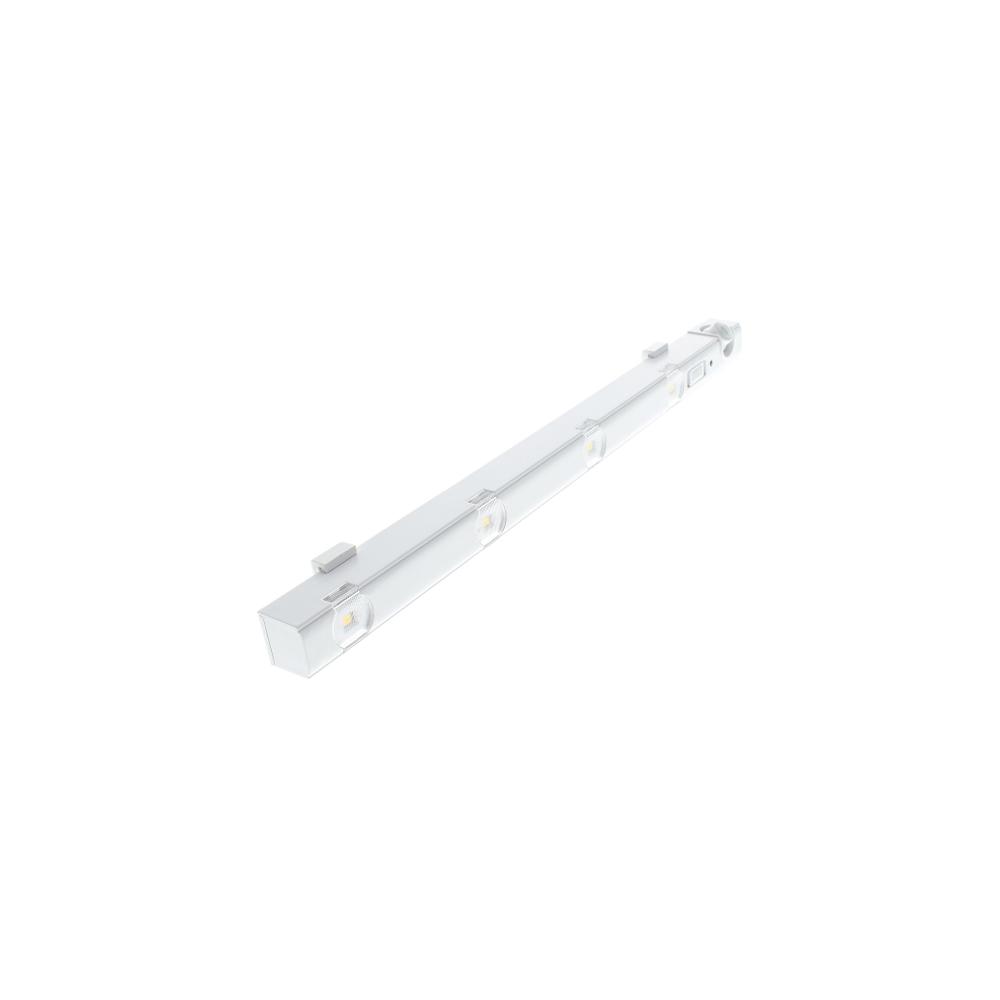

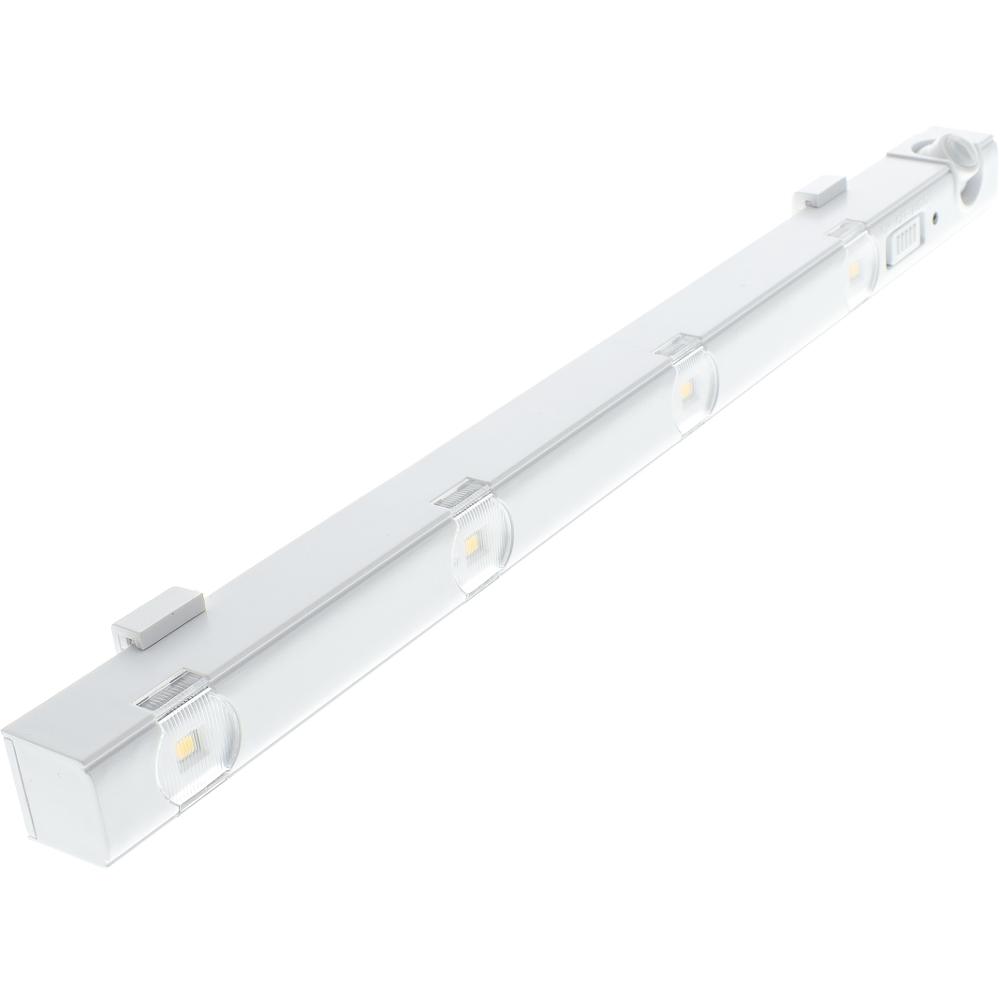

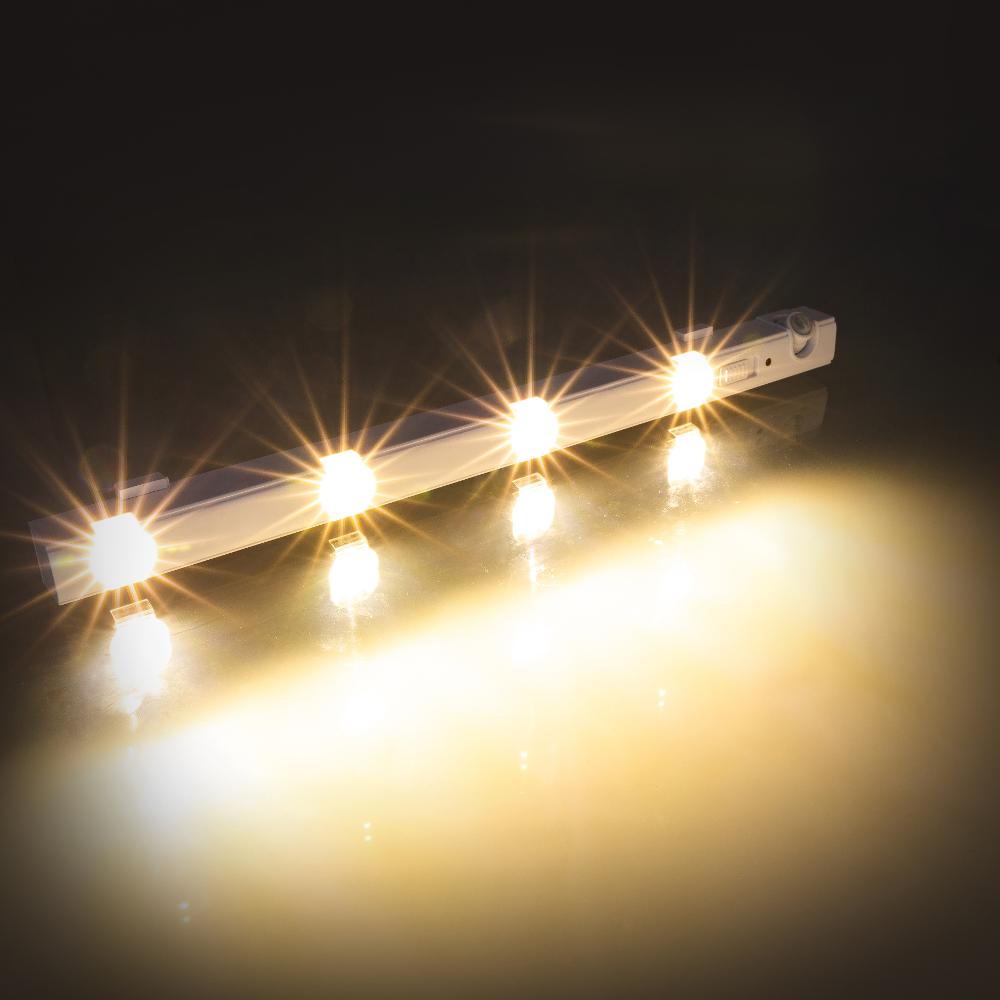

Linear LED light with a PIR sensor

A light in need is a light indeed. A light that will find you in the dark. This linear LED light is fitted with a motion sensor that allows it to switch on by itself. The Retlux light also features a photodiode that switches it on when its gets dark. If you need emergency lighting for use in dark corners and wardrobes, you have just found one.

Description

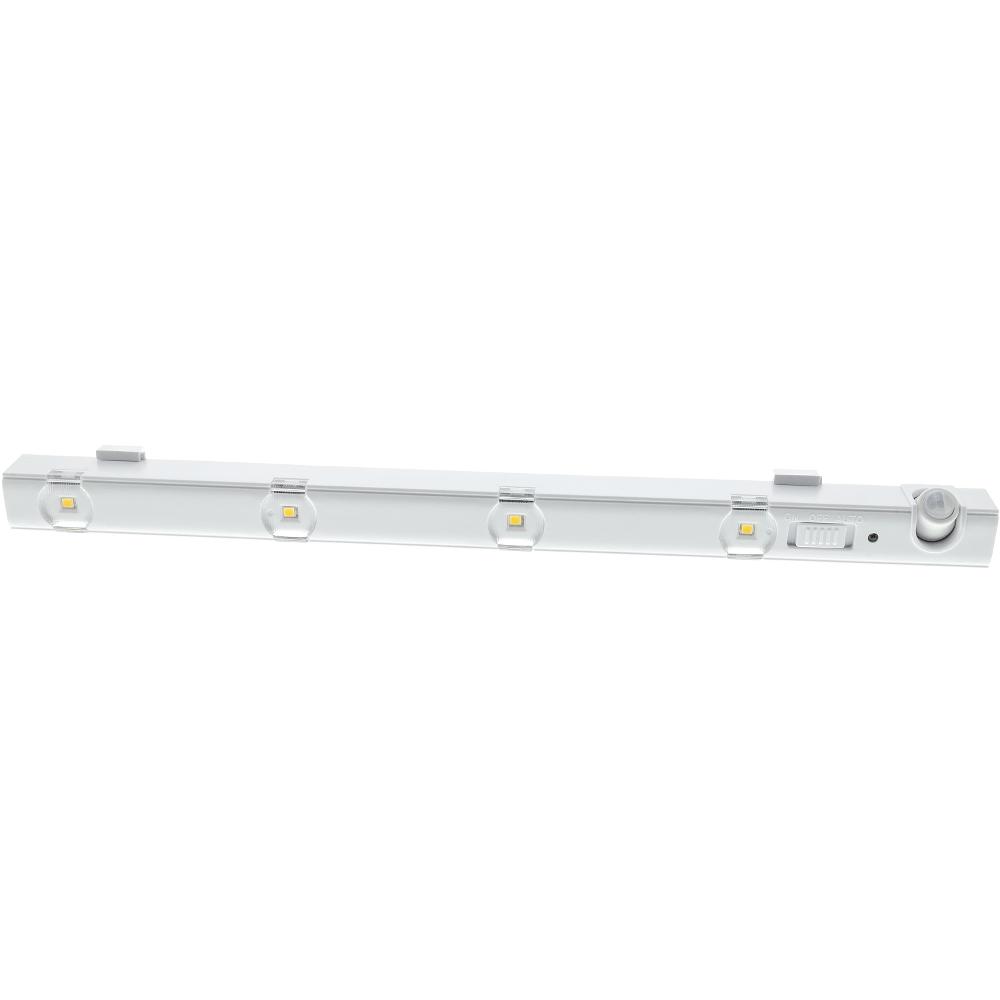

Linear LED light with PIR sensor, photodiode and manual switch
Suitable for cabinets, under the line, etc.
Elegant universal design

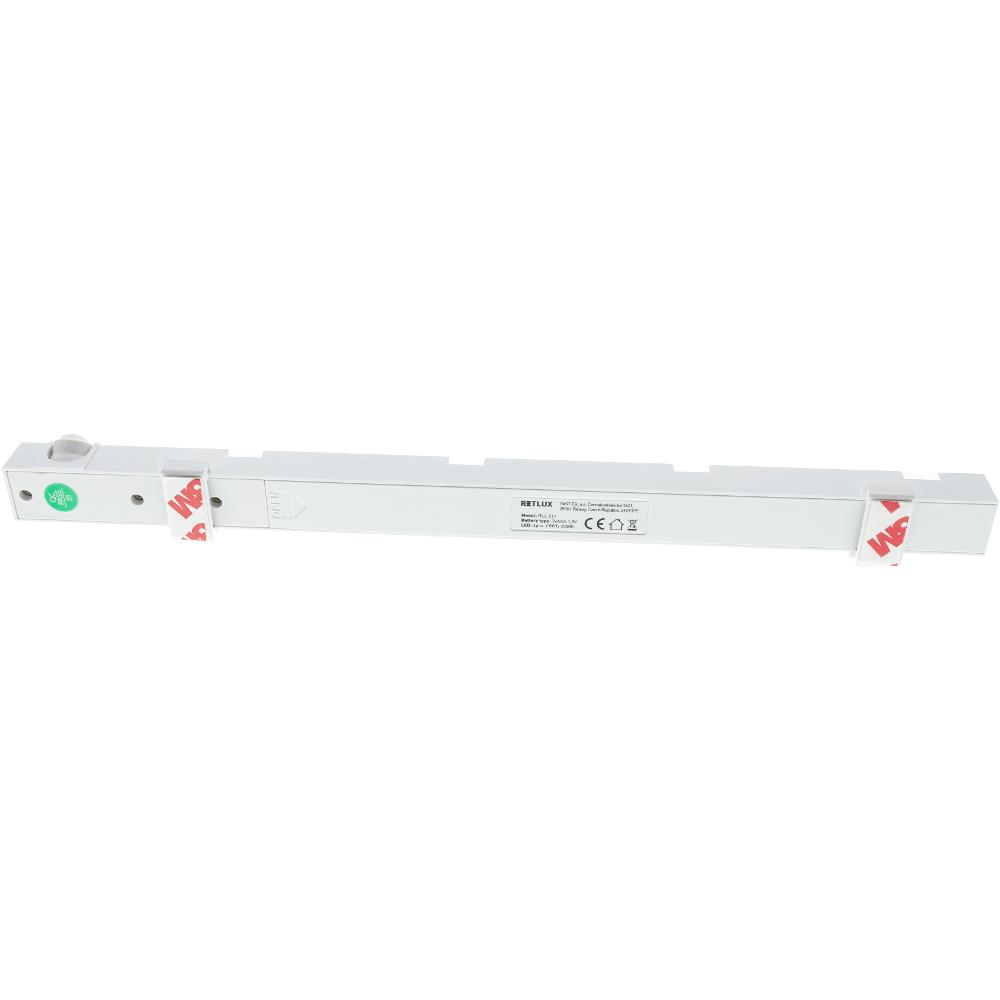

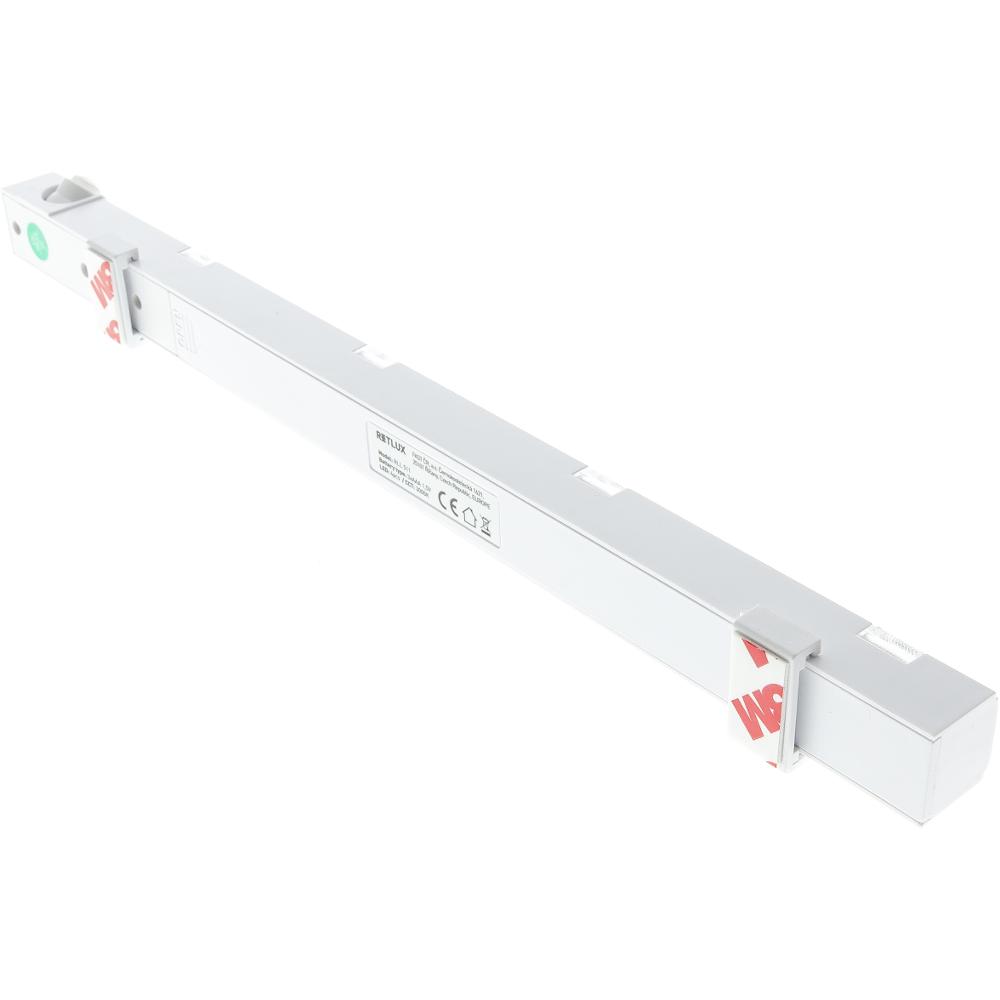

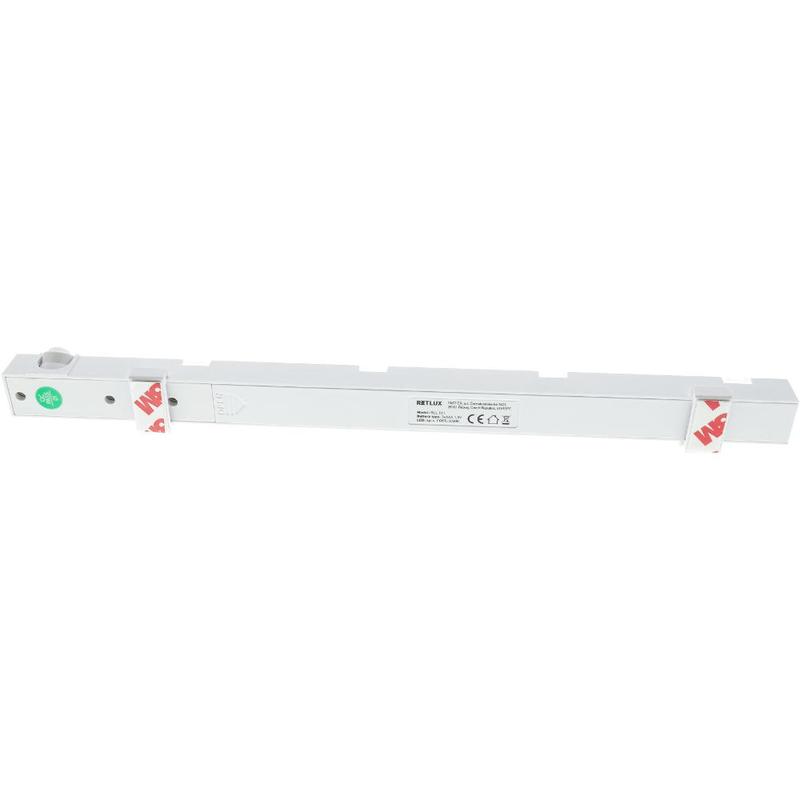

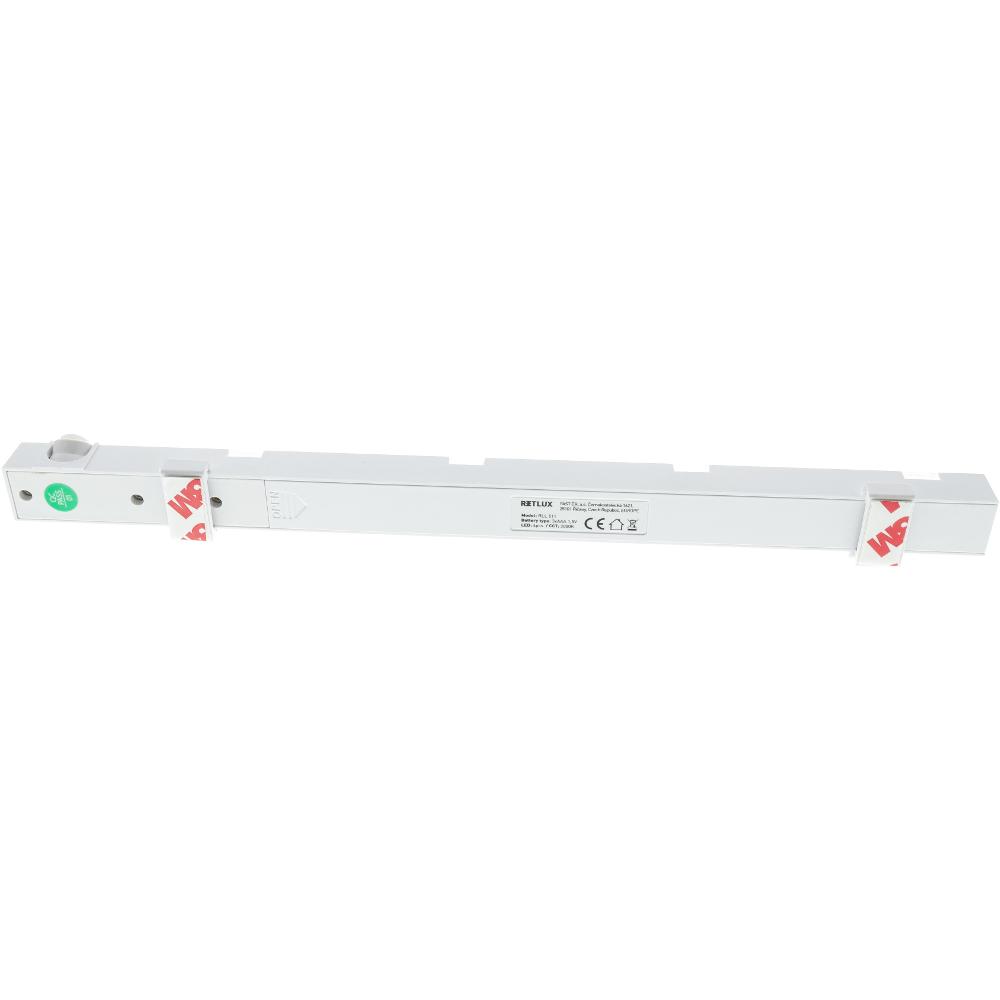

Plastic buckle with 3M tape for easy installation

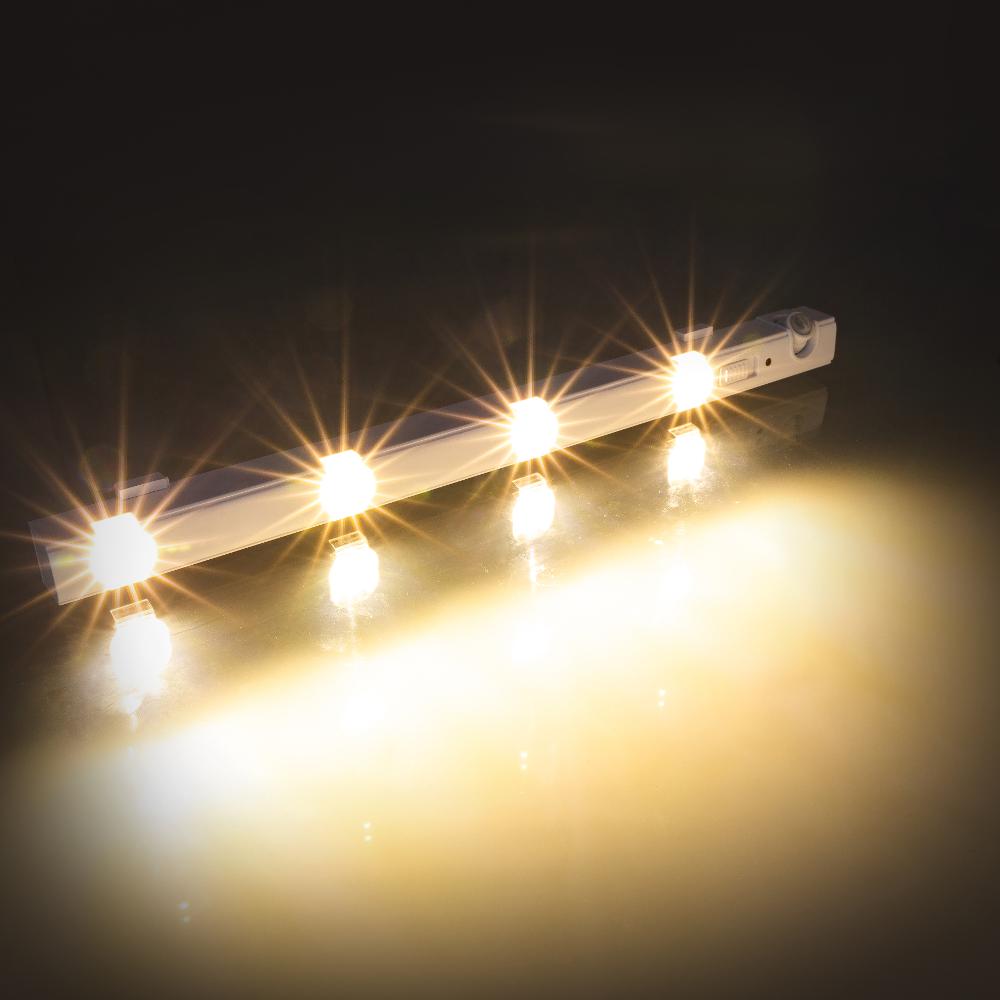

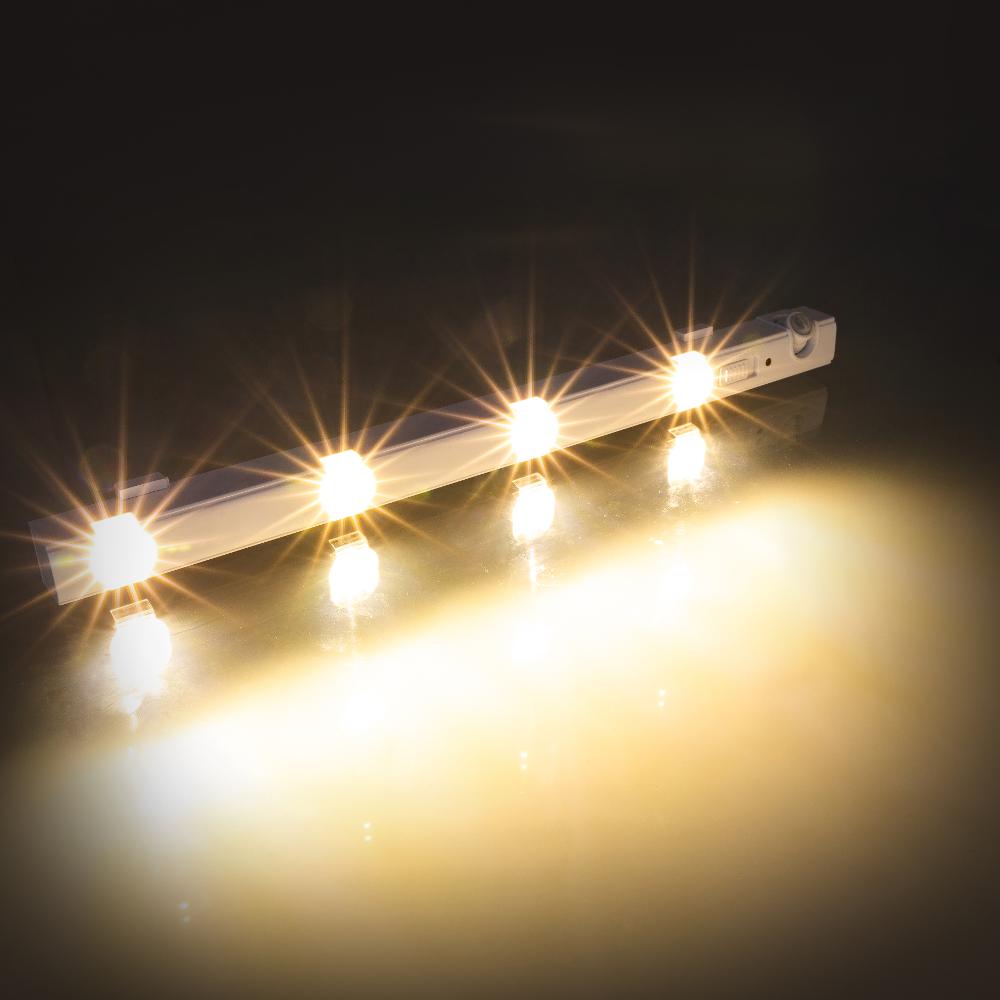

Light color: 3000K warm white
ON / OFF / AUTO function
In AUTO position, the light switches itself on after dark when motion is detected
LEDs: 4
Luminous flux: 34lm
Power consumption: 0.3W
Power: 3xAAA
Detection range: 3m (25 ° C)
Detection angle: 100°
Surface color: white glossy
Material: Plastic (ABS) + PC
Size: 290 x 19 x 19
RA:> 80
Lifetime> 30,000 h
For indoor use only

Technical specs

Voltage
The operating bulb voltage at which the bulb shows the specified luminous flux parameter. Conventional light sources are either designed for 230V mains voltage or are low-voltage (e.g. 12V)
4,5V (3xAAA)
Power input
Power input is a physical quantity that expresses the amount of energy consumed by an appliance per time unit. The smaller the value, the more economical the product, but also less powerful.
0.3 W
Lifetime
The service life of modern light sources is many times higher compared with tungsten filament light sources. The value expresses the number of hours that the light source is able to emit without appreciable loss of luminous flux.
30000 h
Luminous flux
Luminous flux. It’s denoted by the letter Φ and the unit is lumen (lm). Indicates the light energy that the source emits in 1 second. Thus, it is a form of power. The higher the value, the more light the light source emits.
34 lm
Color rendering index
The Colour Rendering Index (CRI) is an assessment of colour fidelity, when illuminated by a given source versus solar illumination. The Ra unit determines the fidelity of the colour perception to the human eye CRI, which is produced by the light source itself. The value of Ra is given as an integer from 0 to 100. Simply put, imagine the value of CRI Ra = 0 at which we do not recognize any colour, at the value of CRI Ra = 100 it is an ideal light source with a natural colour rendering. The lower the CRI value, the more the colours are faded and unnatural. On the contrary, the higher the number, the more vivid and natural things will look.
80
Color temperature
Colour temperature, in professional terms the temperature of chromaticity, is the expression of the colour of light emitted by a luminary. It is denoted by the letter K - Kelvin. In general, the lower the Kelvin value, the warmer and darker the light is. E.g. the wax candle light is 1,900 Kelvin. In contrast, a fluorescent lamp can have about 6,000K.
3000 K
Colour of light
Warm white, cold white, daytime white. This is a verbal indication of colour temperature (in professional terms, chromaticity temperature). Basically, it can be said that warm white has a light colour of yellow, cold white has a bright white light. Daylight white is already a slightly bluish light. The nomenclature may differ from brand to brand. For easy orientation, we mark our light sources with sun icons of the appropriate colour.
Warm white
Length
The parameter indicates the diameter of the light source in mm. An important thing, especially if the luminary has limited space inside.
290 mm
Weight
143 g

Download

  • Manual
