Retlux / Category / Light fixtures / LED Spotlights / RSL 246

LED reflector with PIR sensor
10 W

RSL 246
10 W, cold white, 800 lm, 230 V, for inner/outdoor use, IP65
3d photo

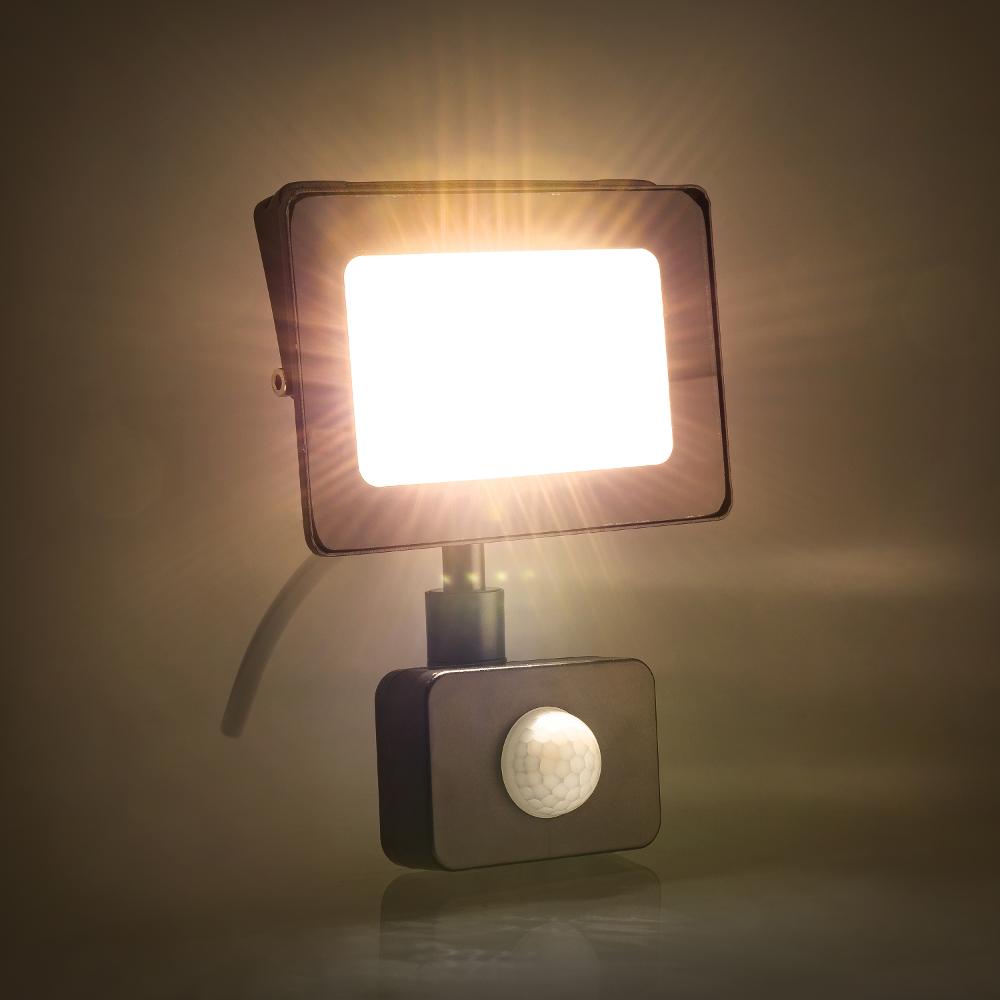

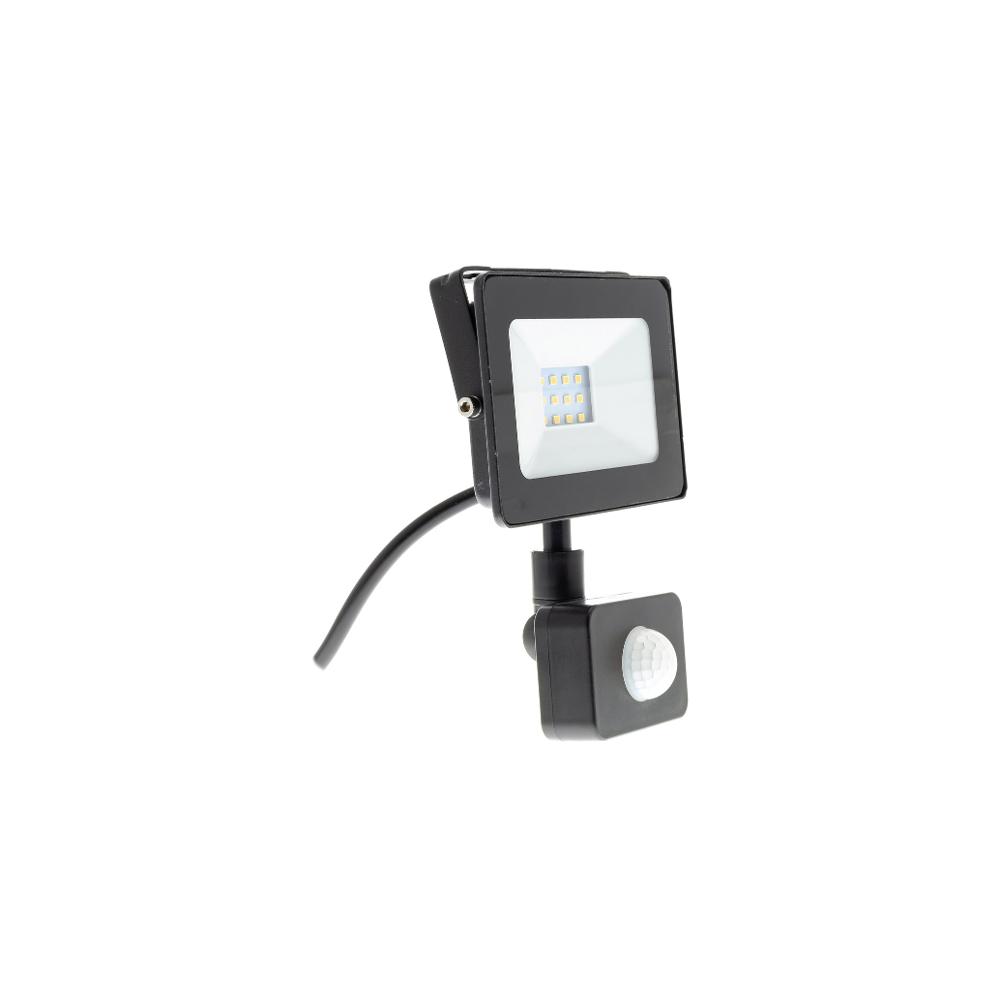

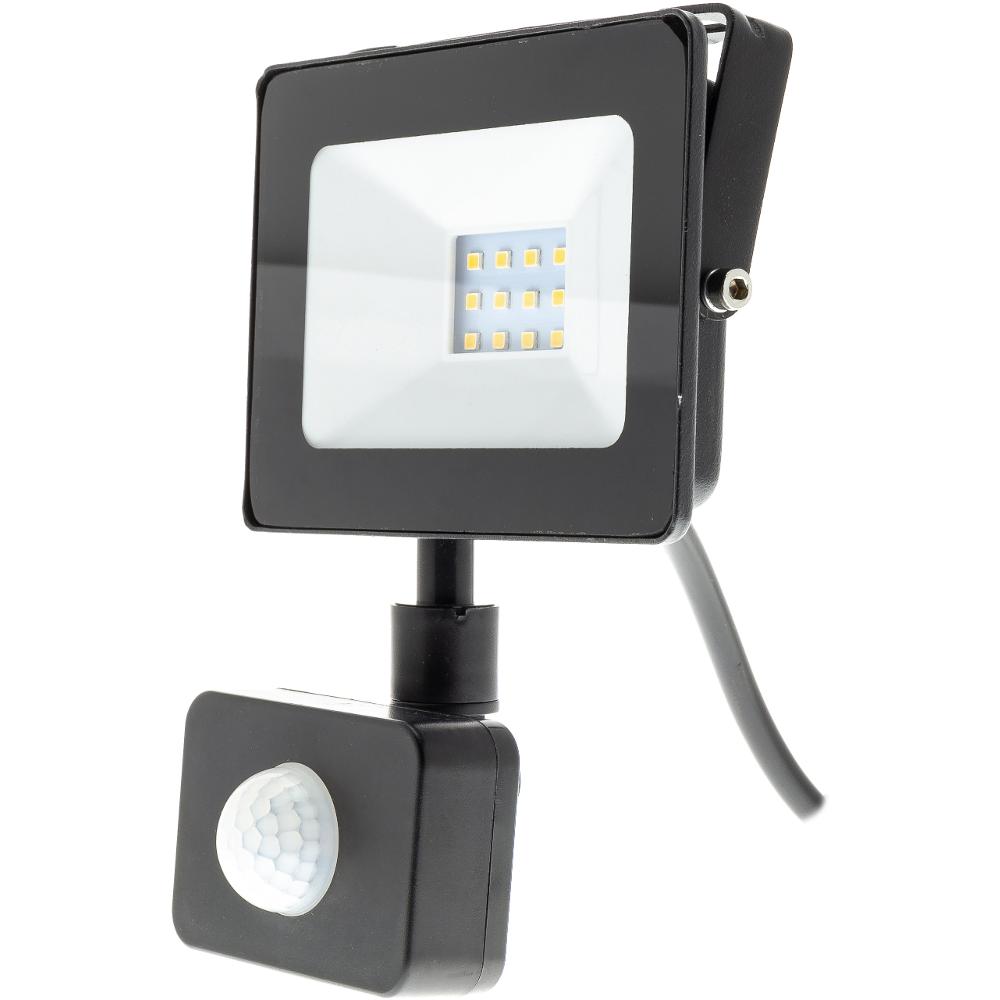

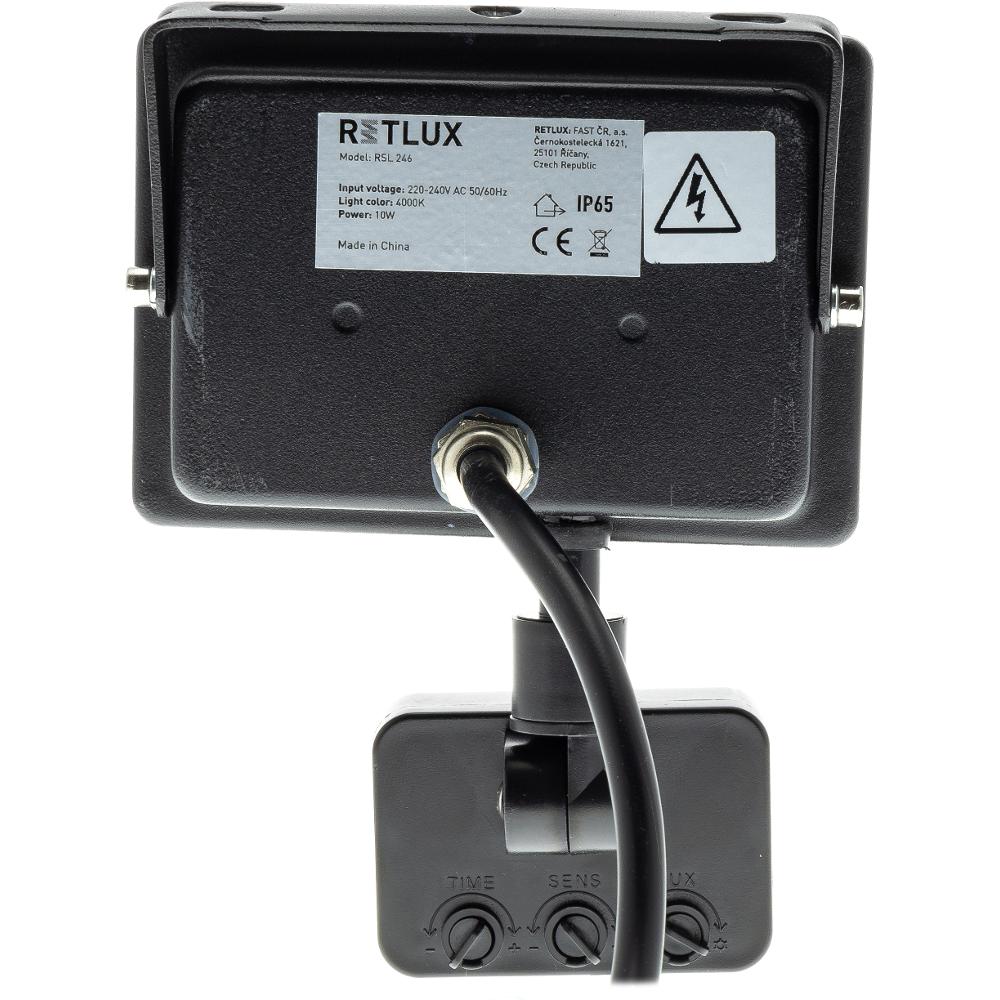

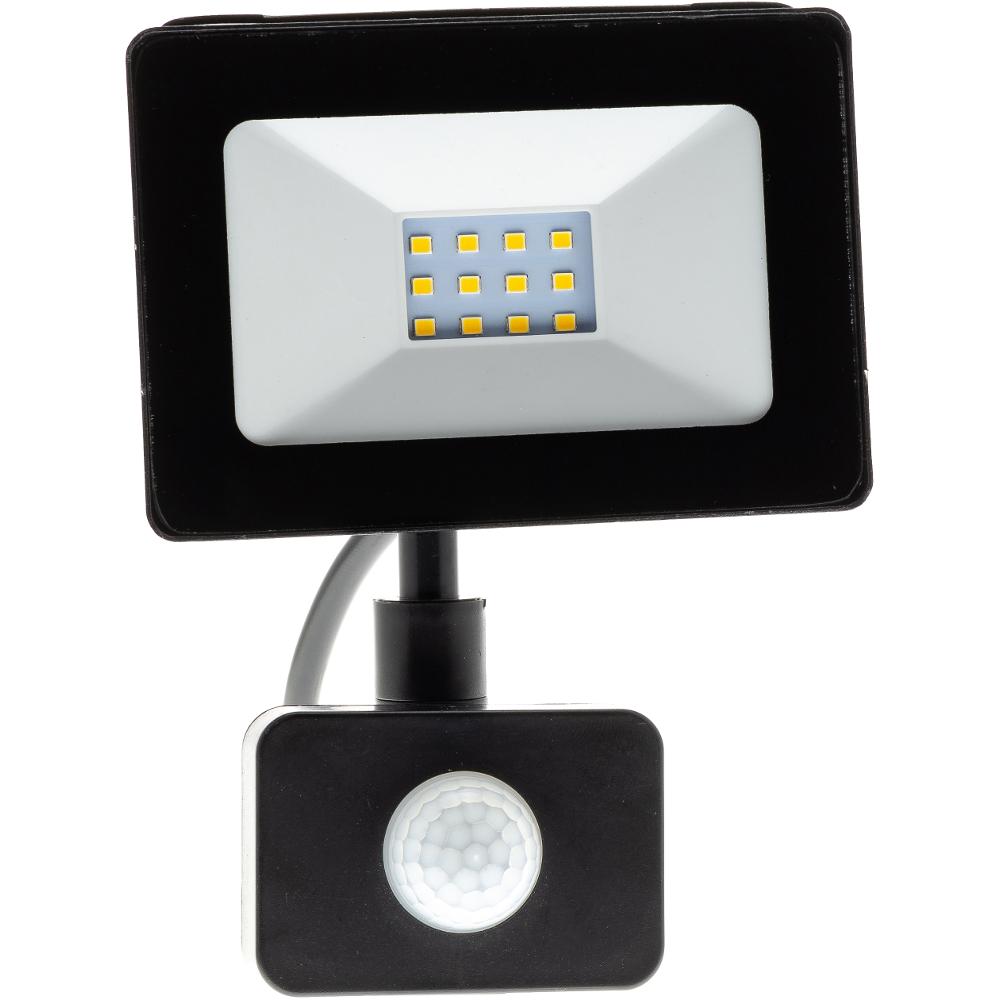

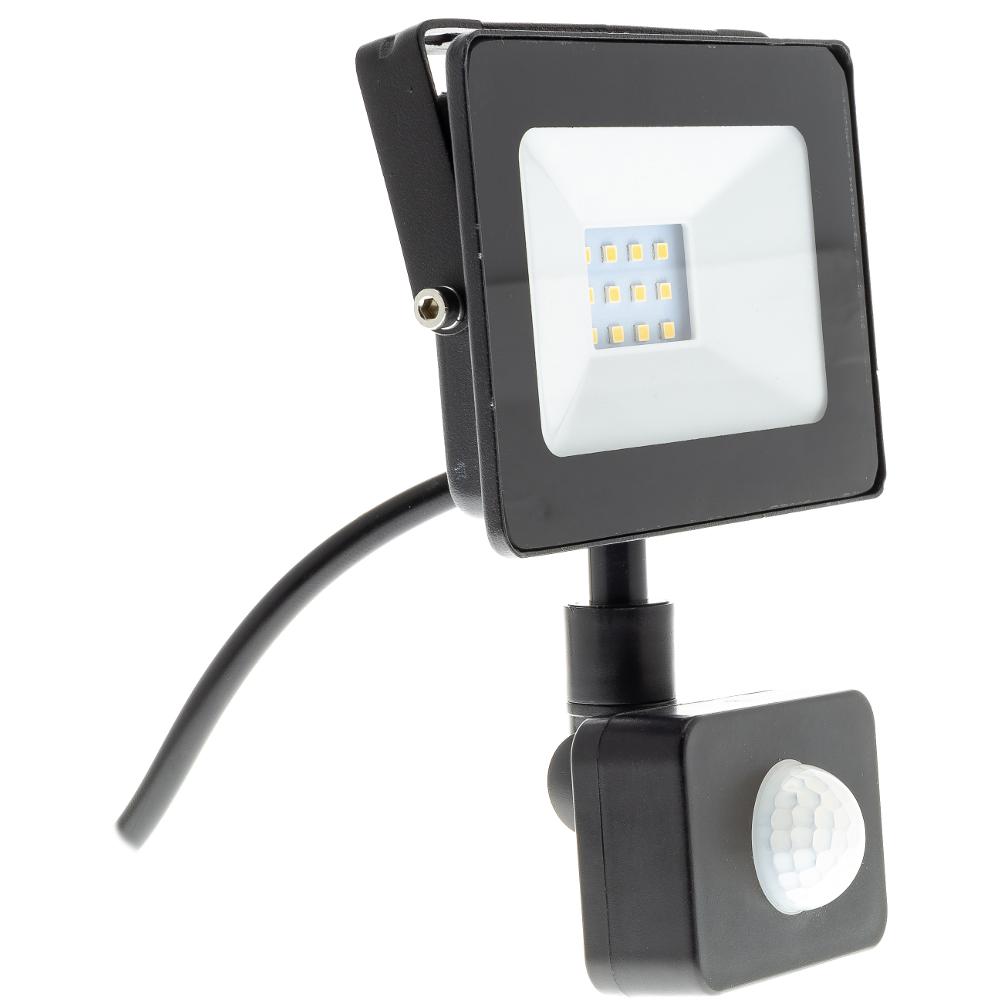

LED reflector

You can use this type of reflectors wherever it is not comfortable or possible to turn the light on manually. The PIR sensor makes the light turn on whenever it detects movement. Suitable for both indoor and outdoor use. The reflector can be used on driveways, terraces, in garages, in warehouse premises and on playing fields.

Description

LED floodlight
All-aluminum body - slim design
Power: 10W
Power supply: 230V AC
Ra: >80
Luminous flux: 800 lm
CCT: 4000K - studená biela
Beam angle: 120 °
PIR range: max 10m
Temperature range: -25 ° C - 45 ° C
Size: 145 x 115 x 47mm
Protection class IP65
10W = 80 W (for halogen bulbs)
PIR sensor

Technical specs

Energy class
The energy class scale on energy labels for light sources has changed since September 1, 2021. You will no longer find energy class with "pluses" on our products, as the scale will now be at the lower end of the scale at the current state of technology. Our light sources are still keeping the same excellent energy efficiency, only the metrics have changed. To keep it simple, just stick to the fact, that the earlier the letter in the alphabet, the more energy efficient the product is.
F
Use
Outdoor and indoor
Power input
Power input is a physical quantity that expresses the amount of energy consumed by an appliance per time unit. The smaller the value, the more economical the product, but also less powerful.
10 W
Motion sensor
Motion sensors are based on the motion detection principle. They will protect your property from unwanted visitors and turn on a light wherever you go.
Economical equivalent
The economical equivalent is simply to compare the consumption of a light source with a conventional tungsten filament bulb with the same luminous flux.
80 W
Certification institution
EC
Luminous flux
Luminous flux. It’s denoted by the letter Φ and the unit is lumen (lm). Indicates the light energy that the source emits in 1 second. Thus, it is a form of power. The higher the value, the more light the light source emits.
800 lm
Certification name
EPREL
Certification code
1228615
Colour of light
Warm white, cold white, daytime white. This is a verbal indication of colour temperature (in professional terms, chromaticity temperature). Basically, it can be said that warm white has a light colour of yellow, cold white has a bright white light. Daylight white is already a slightly bluish light. The nomenclature may differ from brand to brand. For easy orientation, we mark our light sources with sun icons of the appropriate colour.
Cool white
Power
230 V
Protection against water and dust
The degree of protection (IP) indicates the resistance of electrical equipment to the ingress of foreign bodies and the ingress of liquids, especially water. It is expressed in the so-called IP code, which consists of the characters "IP" followed by two digits: the first digit indicates protection against dangerous contact and against the ingression of foreign objects, the second digit indicates the degree of protection against water ingression.
IP 65
Height
11.5 cm
Width
4.5 cm
Depth
4.7 cm

Download

  • Manual
  • Information Sheet
  • Energy Label
