Desription

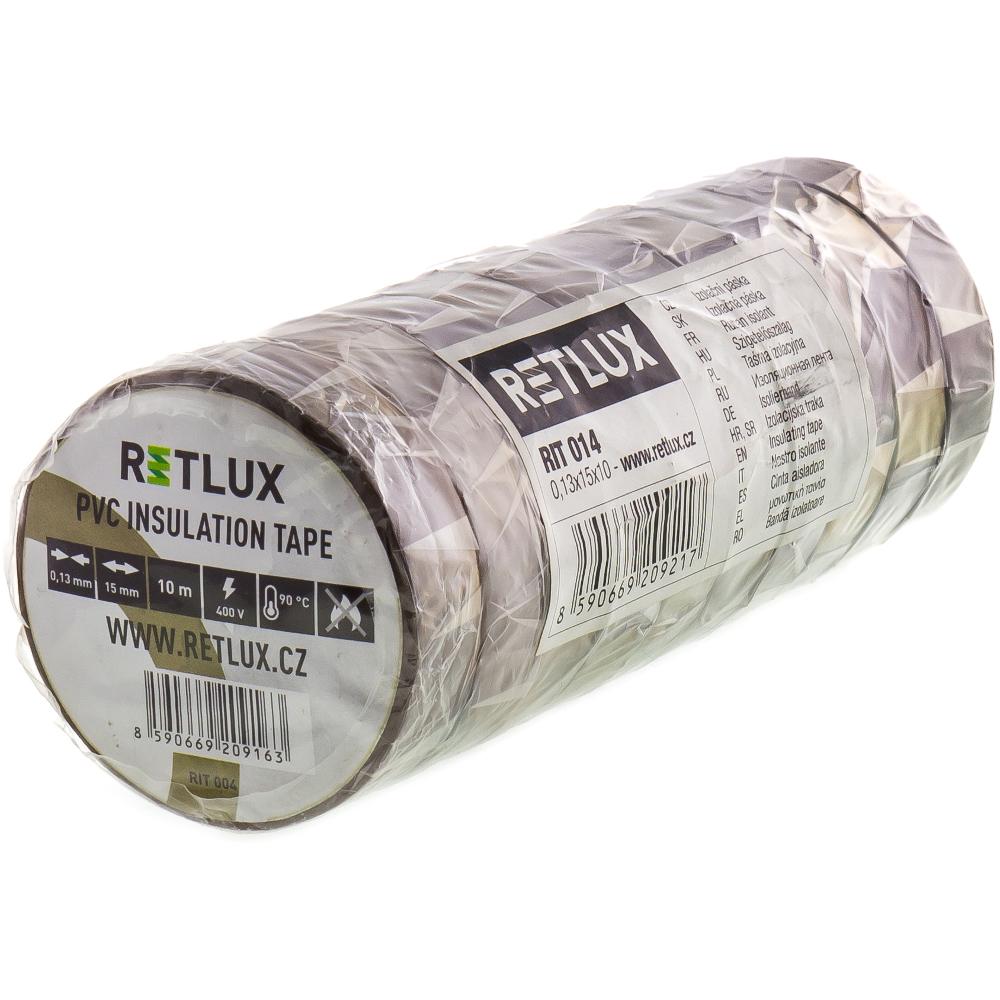

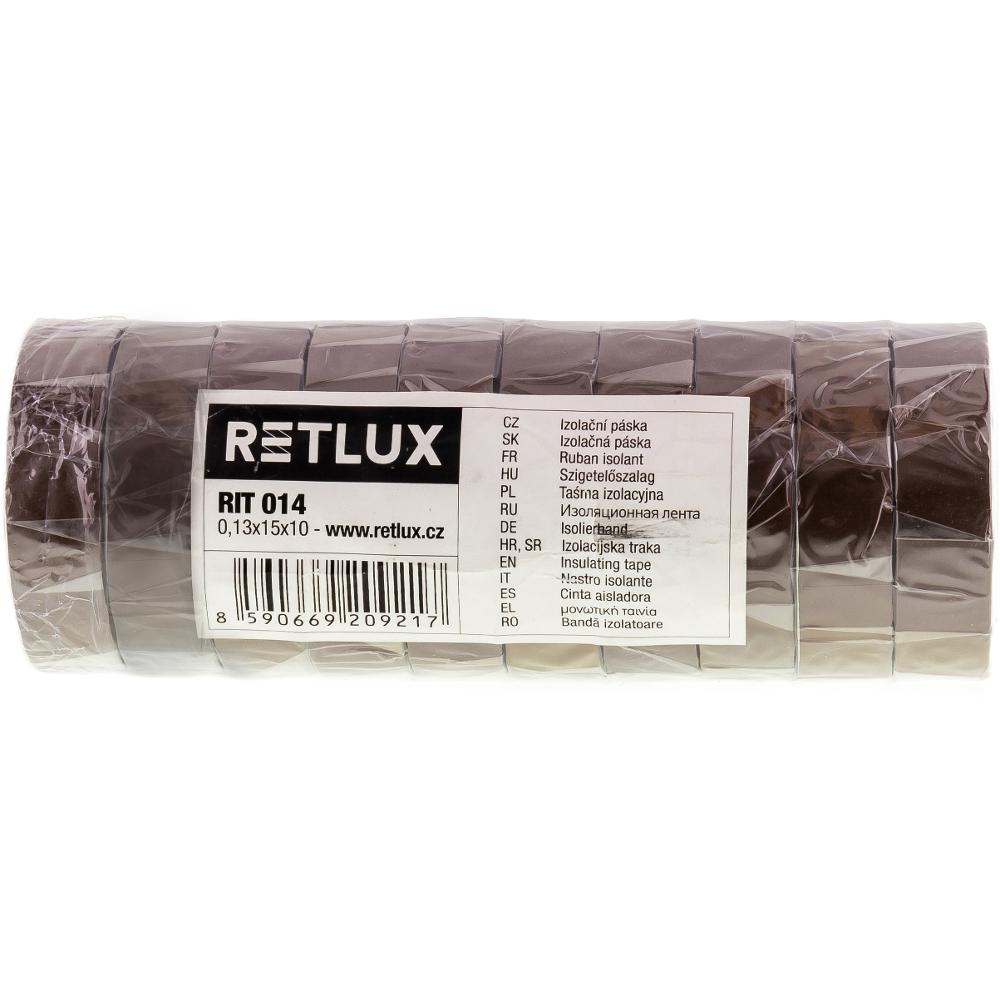

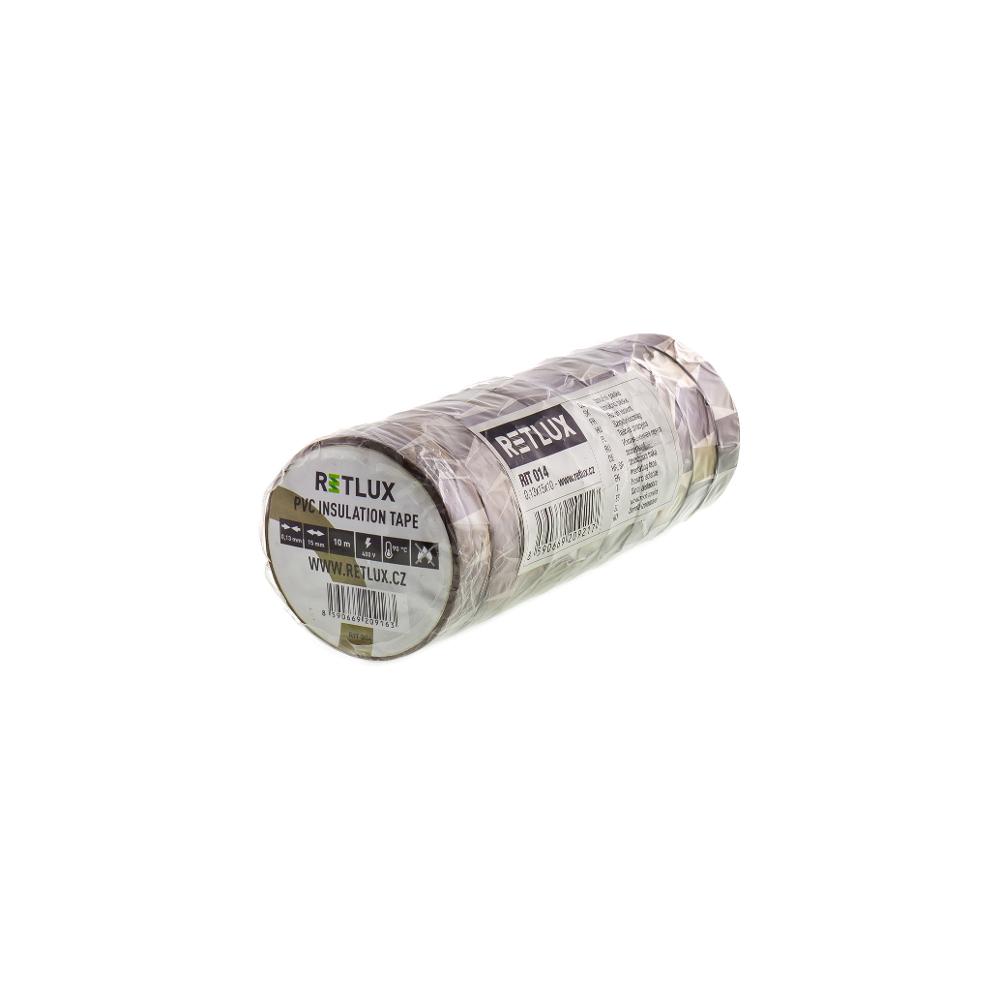

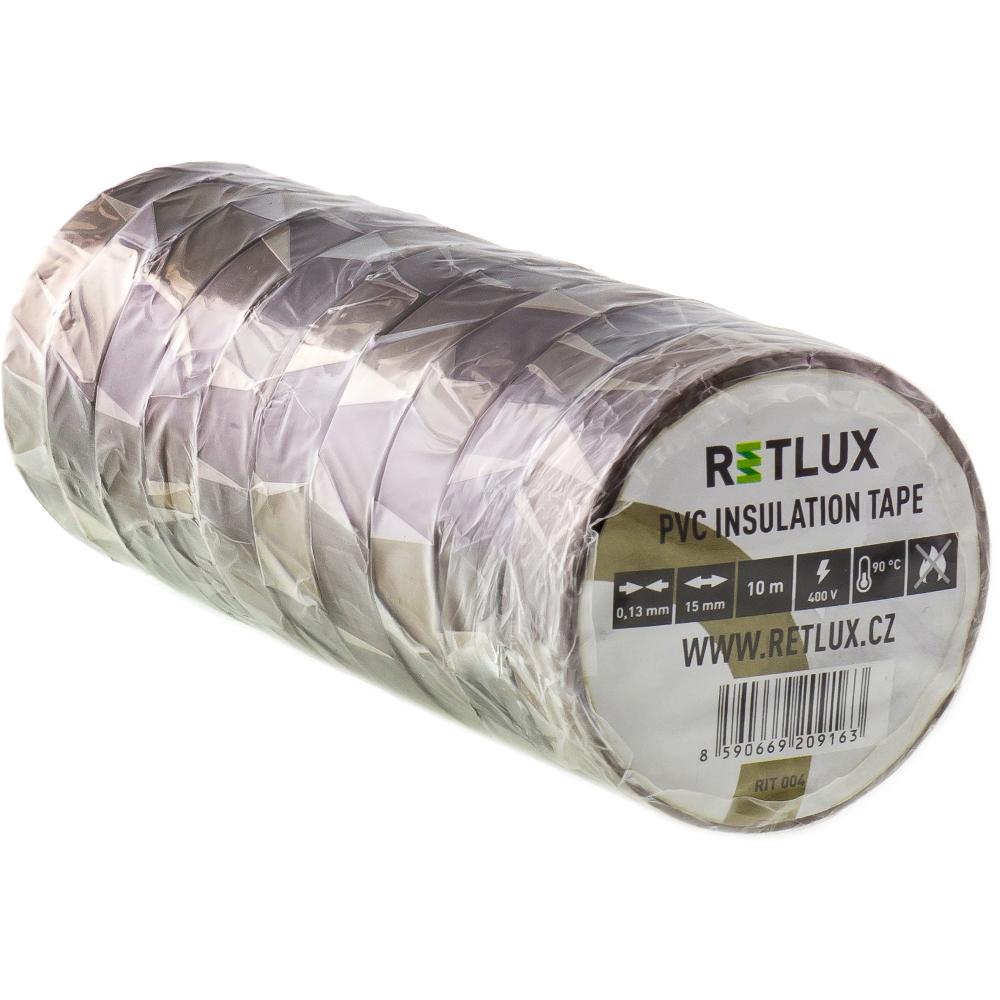

Insulating tape - 10 pieces
PVC material
Tape width 15 mm
Length of roll 10 m
Tape thickness 0.13 mm
Brown colour
Dielectric strength of at least 40 kV / mm
Elongation at least 125%
Dielectric strength after moisture at least 35 kV / mm
ROHS directive
REACH directive
Operating temperature range of 5-90 ° C
Rubber adhesive material
Tensile strength of 150 N / 10 mm
UV resistant
Adhesion to steel of at least 1.8 N / 10 mm
Intended use of the cable insulation
Watertight joint
The recommended storage temperature 10-90 ° C
Conforming to DIN EN 60454-3-1-2 / PVC-F / 60
Test flame <1 sec
Size 56 × 56 × 15 mm
Sales packaging of 10 pieces, foil

Technical specs

Length of roll
10 m
Tape color
Brown
Tape thickness
0,13 mm
Tape width
15 mm
Material
PVC
